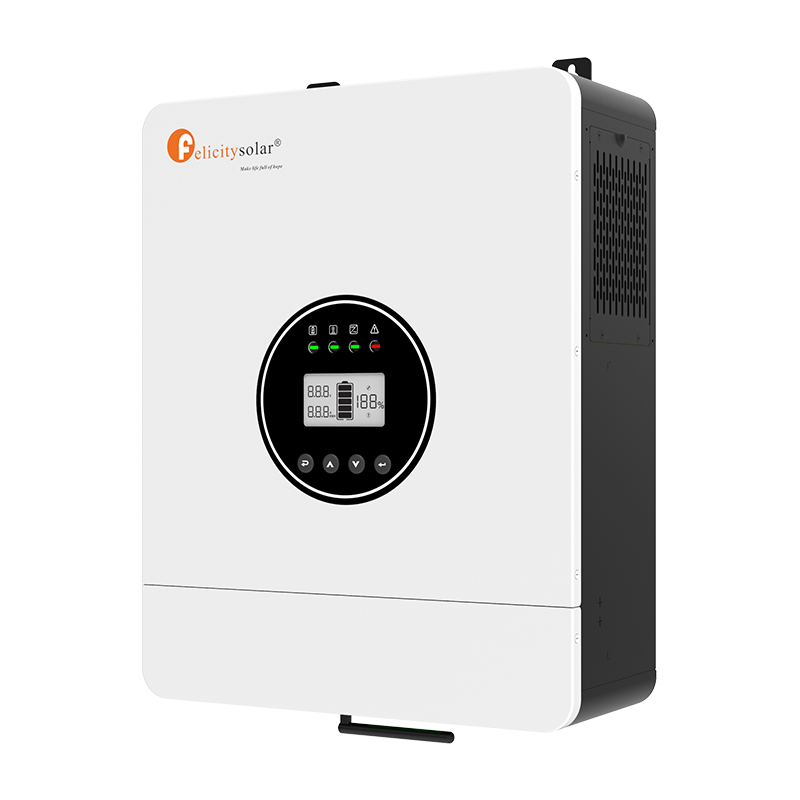

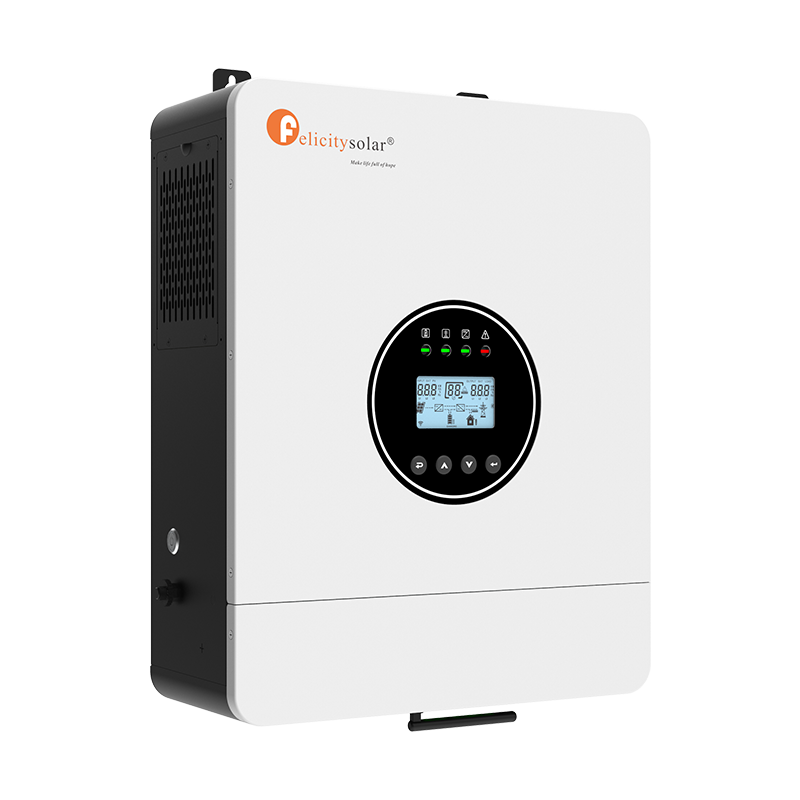

Off-grid Inverter
IVEM6048-II
6kW | Single Phase | LV
What sets it apart.
Explore the key features, performance capabilities, and practical advantages that define this product.
Parallel Capable, Up to 12 Units
The 6KVA model supports single-phase parallel operation of up to 12 units, scaling to 72KW/72KVA (battery must be connected).
120A Max Charging Current
PV and utility charging work together for fast battery recovery (adjustable 10–120A).
6000VA / 6000W Pure Sine Wave
Stable 230Vac sine wave output with 10ms typical transfer time (UPS mode) for sensitive household appliances.
7500W PV Input, 90–500V Range
Wide PV voltage range with up to 27A input current accepts larger solar arrays.
Mains or Generator Ready
Accepts utility power or a generator as the AC source.
LCD Settings & Wi-Fi Monitoring
Set input voltage range, battery charging current and AC/Solar charger priority on the LCD, and monitor the system anytime via mobile APP.
Smart Output Port
The generator port can be changed to a smart output port with customizable output duration.
Battery Flexibility
Runs without a battery and includes a lithium battery activation function.
Full Protection
Overload, over-temperature and short-circuit protection guard the system.
Specifications
Detail Specifications of IVEM6048-II
| Model | IVEM6048-II |
|---|---|
| Rated Output Power | 6000VA / 6000W |
| Nominal DC Input Voltage | 48V |
| Output Voltage Waveform | Pure sine wave (230Vac ± 5%) |
| Max. PV Input Power | 7500W |
| Max. PV Open Circuit Voltage | 500V |
| Max. Charging Current (PV + Grid) | 120A |
| Peak Efficiency | 93% |
| Parallel Capability | Up to 12 units (single phase, max. 72KW/72KVA) |
System Expansion
The IVEM6048-II supports single-phase parallel operation of up to 12 units, with a supported maximum output power of 72KW/72KVA.
Parallel to 72KW
Single phase, up to 12 units.
Battery Must Connect
Required for parallel operation.
Overview:
IVEM6048-II

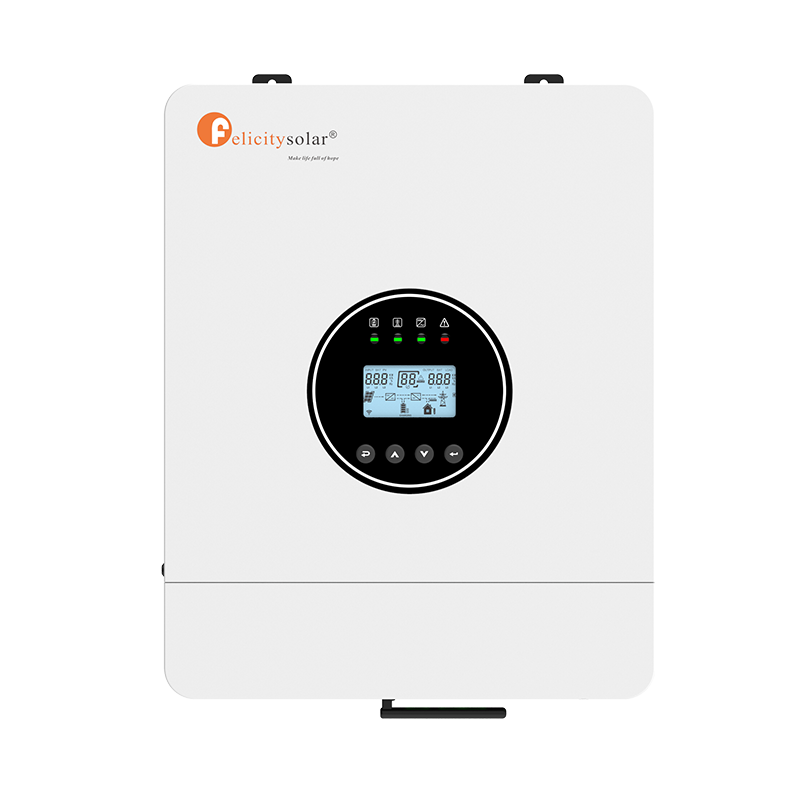

This is a multi-function inverter/charger, combining functions of inverter, MPPT solar charger and battery charger to offer uninterruptible power support with portable size. Its comprehensive LCD display offers user-configurable and easy-accessible button operation such as battery charging current, AC/solar charger priority, and acceptable input voltage based on different applications.

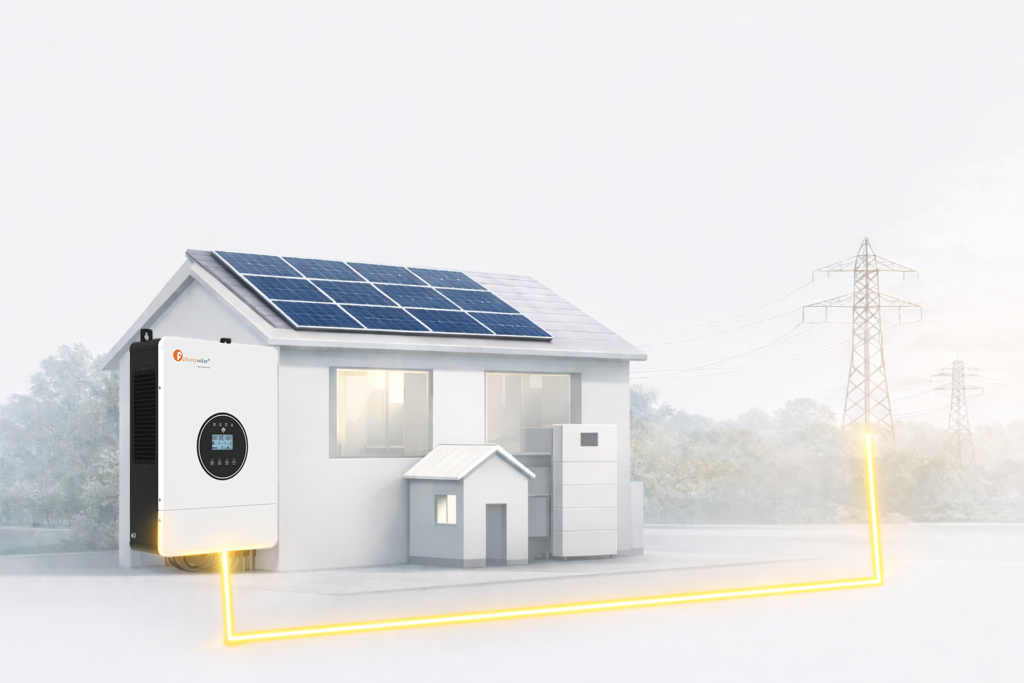

Feed Excess Solar Power Back to Where It's Needed
Zero-Waste Solar Energy
Make the most of your solar energy. Excess PV power can be intelligently fedback to grid-side loads, ensuring no energy goes to waste andimproving overall efficiency.
For Installers
Enhance system flexibility and maximizeenergy utilization with intelligentfeed-in capability.
For Users
No solar energy wasted -use every watt you generate.
Add Your Heading Text Here
Lorem ipsum dolor sit amet, consectetur adipiscing elit. Ut elit tellus, luctus nec ullamcorper mattis, pulvinar dapibus leo.
Lorem ipsum dolor sit amet, consectetur adipiscing elit. Ut elit tellus, luctus nec ullamcorper mattis, pulvinar dapibus leo.
Lorem ipsum dolor sit amet, consectetur adipiscing elit. Ut elit tellus, luctus nec ullamcorper mattis, pulvinar dapibus leo.

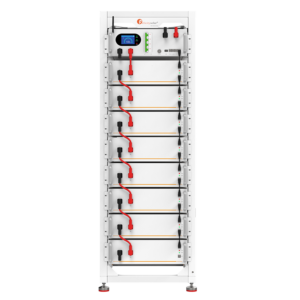

Multiple Bracket Options
Adapt to different installation scenarios with flexible configuration for IVEM6048-II
9-Layer Bracket
Medium capacity configuration with high cost performance

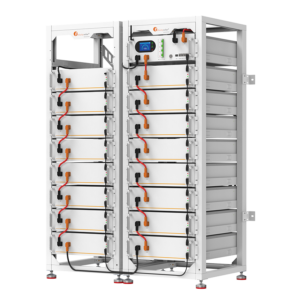

13-Layer Bracket
Medium capacity configuration with high cost performance

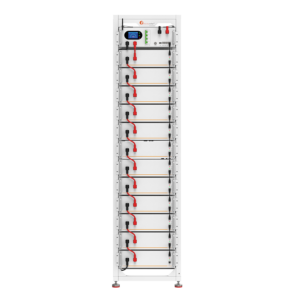

16-Layer Bracket
Medium capacity configuration with high cost performance
Application Scenarios
IVEM6048-II is perfectly suited for various high-demand energy storage scenarios
Factory
Store
Warehouse
Villa
School
Resident
Hospital
