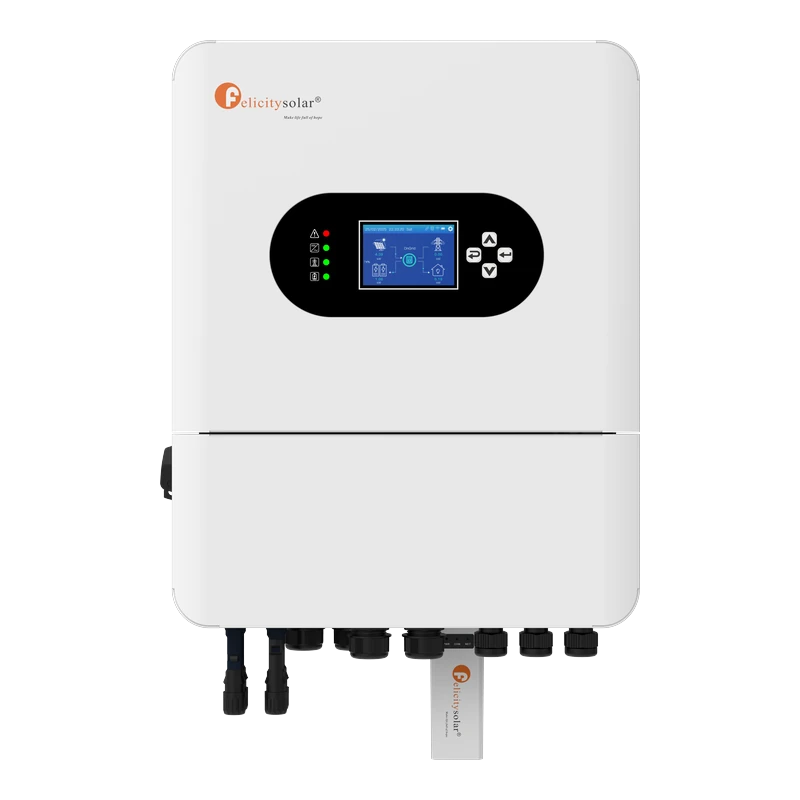

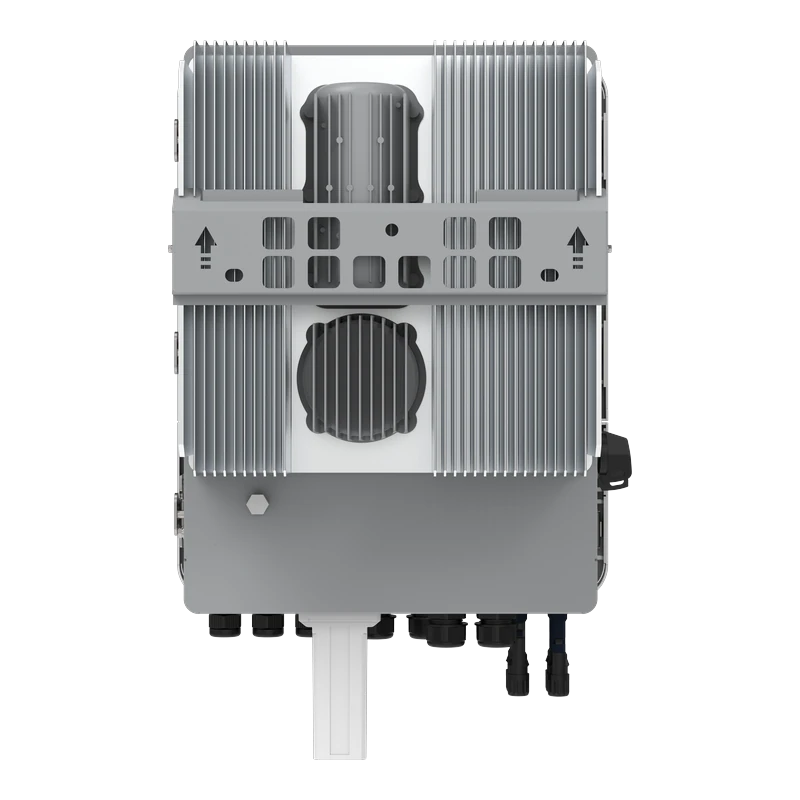

Hybrid Inverter
IVGM3~6kW-P1G2
3~6kW | Single Phrase | LV
What sets it apart.
Explore the key features, performance capabilities, and practical advantages that define this product.
< 10ms Seamless Switching
Off-grid switching time of under 10ms ensures zero power interruption for critical loads.
Single & 3-Phase Parallel
Flexible parallel operation supporting both single-phase and three-phase expansion.
3.5" Touchscreen Display
Intuitive LCD touch screen for easy parameter configuration and status tracking.
Smart Cloud Monitoring
Built-in Wi-Fi supporting remote access via Fsolar Smart Cloud System.
1.6x DC Oversizing
2-channel PV and 2-channel MPPT supporting up to 1.6x oversizing capacity.
135A High Current
Powerful battery charge and discharge current reaching up to 135A.
Programmable Generator Port
Smart generator management supporting smart load and micro-inverter integration.
Smart Multi-Working Modes
Supports TOU, Selling First, Zero Export to CT/Grid, and customizable battery priority.
IP65 Protection Rating
Durable and weather-resistant design suitable for various installation environments.
Specifications
Detail Specifications of IVGM3~6kW-P1G2
| Model | IVGM3KLP1G2-24 | IVGM3KLP1G2 | IVGM3K6LP1G2 | IVGM4K6LP1G2 | IVGM5KLP1G2 | IVGM6KLP1G2 |
|---|---|---|---|---|---|---|
| Rated AC Input/Output Power | 3kW | 3.68kW | 4.6kW | 5kW | 6kW | |
| Relate AC Voltage | 220V/230 0.85Un-1.1Un | |||||
| MPpT Voltage Range(V) | 150-425 | |||||
| Grid Connection Form | L+N+PE | |||||
| Battery Voltage Range(V) | 20-30 | 40-60 | ||||
| Max.Charging Current (A) | 140 | 70 | 90 | 115 | 120 | 135 |
| Communication Interface | RS485/RS232/CAN | |||||
| Protection Degree | IP65 | |||||
Superior System Expansion Capability
Flexible configuration to meet different capacity requirements of IVGM3~6kW-P1G2
3~6kW
Power Range
12 units
Parallel operation support: up to 12 units
What is
IVGM3~6kW-P1G2?
This hybrid solar inverter is designed for residential and small commercial applications, providing stable power supply through the integration of:
1. PV modules
2. Battery storage systems
3. Utility grid and optional generator
It supports both on-grid and off-grid operation, ensuring power availability during grid outages.
Add Your Heading Text Here
Lorem ipsum dolor sit amet, consectetur adipiscing elit. Ut elit tellus, luctus nec ullamcorper mattis, pulvinar dapibus leo.
Lorem ipsum dolor sit amet, consectetur adipiscing elit. Ut elit tellus, luctus nec ullamcorper mattis, pulvinar dapibus leo.
Lorem ipsum dolor sit amet, consectetur adipiscing elit. Ut elit tellus, luctus nec ullamcorper mattis, pulvinar dapibus leo.
Multiple Bracket Options
Adapt to different installation scenarios with flexible configuration for IVGM3~6kW-P1G2

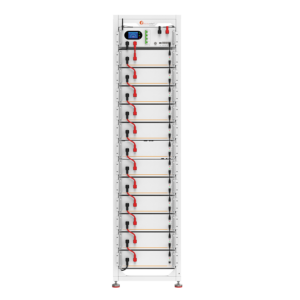

9-Layer Bracket
Medium capacity configuration with high cost performance
13-Layer Bracket
Medium capacity configuration with high cost performance
16-Layer Bracket
Medium capacity configuration with high cost performance
Application Scenarios
IVGM3~6kW-P1G2 is perfectly suited for various high-demand energy storage scenarios
Factory
Store
Warehouse
Villa
School
Resident
Hospital
